Series E300-3

Here you can configure your Energy Chain System® individually. All entries will be copied to the Bill of Materials shown at the bottom of this page.

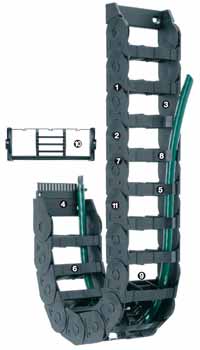

Series E300-3 - to be filled in the outer radius

1. Limited torsion tolerance
2. Large pins for long service life
3. Cable-friendly interior
4. Integrated strain relief option
5. “E” Series features split crossbar along the outer radius
6. “Z” Series features split crossbar along the inner radius
7. Dirt-repellent exterior
8. Very easy to fill - cables only have to be pushed in
9. Interior separation possible
10. 1-, 2- or 3-chamber system available
11. Patented push button principle holds the links together

When to use Series E300-3

If filling is required without opening and closing
If price is an issue
If quiet operation is required

When not to use Series E300-3

When a large unsupported length is required
Series 350
When reliable locking of the snap-open crossbars is required
Series 350

Installation dimensions


Part No. :
Inner width Bi [inch]:
Bi1 [inch]:
Bi2 [inch]:
Bi3 [inch]:
Bending radius R [inch]:
Travel distance S [ft]:
Fixed end dM [ft]:
Chain length^** [ft]:
Number of chain links :
External width Ba [inch]:
H^* [inch]:
D [inch]:
K [inch]:
Hi [inch]:
Ha [inch]:
Weight per link [oz.]:
Weight [lbs/ft]:
* The required installation clearance is HF = H + 1.57 (40 mm) (in the case of 1.68 lbs/ft (2.5 kg/m) additional load) If extremely restricted space is available, please consult us.
** The calculated length corresponds to the chain length without mounting brackets.

A=Moving End , B=Fixed End
Pitch: 2.64 (67 mm) per link
Links per ft: 5 (15/m)
Travel: S
Chain length = S/2 + K

Unsupported length

Dependency of the unsupported length on the additional load
X axis: Unsupported length in ft FLB/FLG
Y axis: Additional load in lbs/ft
Lower scale: Length of travel S in ft
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

2 variants of mounting brackets

3 widths and 7 bending radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Width [inch]:
Part No. :

Pc. Add to part list

Online Services:

Variable shelf for E300-3/45 · Z300-3/45
Shelves offer the option to divide the interior of the E-Chain® E300-3/45 and Series Z300-3/45. They are used exclusively for horizontal separation.
Separators are mounted every second chain link as standard.

Mounting brackets

Option 1 – mounting brackets "pivoting"

Option 2 - mounting brackets "locking"

unassembled	assembled

Recommended for unsupported
and gliding applications

Space-restricted conditions

Available with or without strain
relief tiewrap plates

Corrosion-resistant


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

unassembled	assembled

Recommended for unsupported
and gliding applications

For high speed and/or
accelerations

Corrosion-resistant


:
Part No. :
A [inch]:
Number of teeth :

Strain reliefs

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [ft]	32,81 (10 m)
standing (max.) [ft]	4,92 (1,5 m)
max. side-mounted, unsupported [ft]	1,64 (0,5 m)
max. vertical, long travels [ft]	82,02 (25 m)
circular	with reworking

Material of chain links	igumid NB
Min. permissible temperature [°F]	-40 (-40 °C)
Max. permissible temperature [°F]	176 (80 °C)
Gliding speed (max.) [fpm]	590,55 (3 m/s)
Max. gliding speed [ft/s²]	32,81 (10 m/s²)
Speed FLG max. [fpm]	3937,01 (20 m/s)
Speed FLG max. [ft/s²]	656,17 (200 m/s²)
Speed FLB max. [fpm]	590,55 (3 m/s)
Speed FLB max. [ft/s²]	19,69 (6 m/s²)
Flammability class of chain link	VDE 0304 IIC UL94 V2
