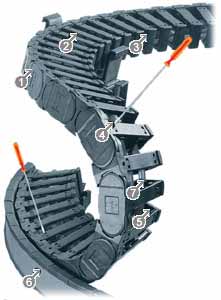

System TwisterChain® Series 2808

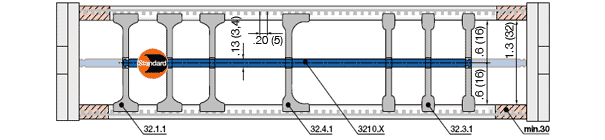

Separators can be placed in the required position in the chain cross section. In the standard configuration, a separator is mounted at every second chain link.

• NEW: Split separator T323(A) for use with intermediate shelf 386-X - ideal for subsequent shelving or for the initial assembly of the E-Chain®. Fast assembly and disassembly possible through hinge/push mechanism. Saves assembly time. Enhances flexibility.


• Standard separator 281 for E-Chains® offers safe stability due to its broad foot design, also when used with thick cables or hoses. If the distance needed between separators is greater than this separator’s dimension, we offer the Vertical separator 281-14.


• Vertical separator 283 with a narrow foot for E-Chains® with applications where a large number of small cables need to be individually separated.


• Separators for E-Chains® can be fixed in their position with Spacers 381-XX. The available inner height will be reduced by 0.08 (2 mm), per spacer and side. To avoid this, the parts can be assembled on outside of the crossbar (not for long travels). XX = width of the spacer (available 0.39, 0.59 and 0.79 (10, 15 and 20 mm)).


• Locking separator 293 for E-Chains® - with increased retention force for applications exposed to very high humidity or extreme loads. The extra retention force is achieved by asymmetric claws for the crossbar. Ensure proper alignment.


• Asymmetric separator 281A for E-Chains® with an 0.47inch (12mm) base, for combinations between spacers of different widths and vertical separators in side-mounted applications, for instance.

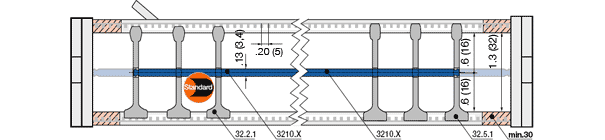

For use with many cables of differing diameters. E-Chains® and E-Tubes can be subdivided both vertically and horizontally.

• NEW: Split separator T323(A) for use with intermediate shelf 386-X - ideal for subsequent shelving or for the initial assembly of the E-Chain®. Fast assembly and disassembly possible through hinge/push mechanism. Saves assembly time. Enhances flexibility.


• Side plates 286, separators 288 and intermediate shelves 386.X form the basic grid of a shelving system. Shelves of various widths can be arranged at 3 different heights (in 0.28 (7 mm) increments).


• For special applications: Vertical separator with injection moulded shelf 281-S-57 (2.26 (57.5 mm)) or 281-S-45 (1.77(45mm)).


• For a very fine shelving solution, height slot separators 291 are used. However this cannot be integrated subsequently in an existing division without disassembly of the interior separation.


• The unilateral open, slotted separator 297 can be retrofitted into an existing interior separation system without a need for dismantling the interior separators. During an installation of open slotted separators, the top and bottom notches cannot be occupied by shelves.
