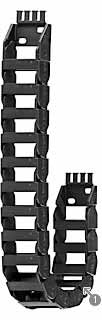

Series 10 'E2 mini'

Single-piece guide troughs made of steel are available for Series 10, 15 and B15. They are equipped with a continuous gliding surface in the region of the guide trough with glide bars. Such guide troughs with an outer chain width up to 2.36 (60 mm) are available ex-stock. Special solutions are available at short notice for wider Energy Chains®.
No installation sets are required for these trough sizes, as the guide troughs consist of a one-piece U-profile. The joint connection is designed individually for each application.The standard length of the trough components and glide bars is 6.56 ft (2 m). The required total length of the guide trough is determined by the travel.
